Analog extreme ONE PIECE DIAMOND

OVERVIEW

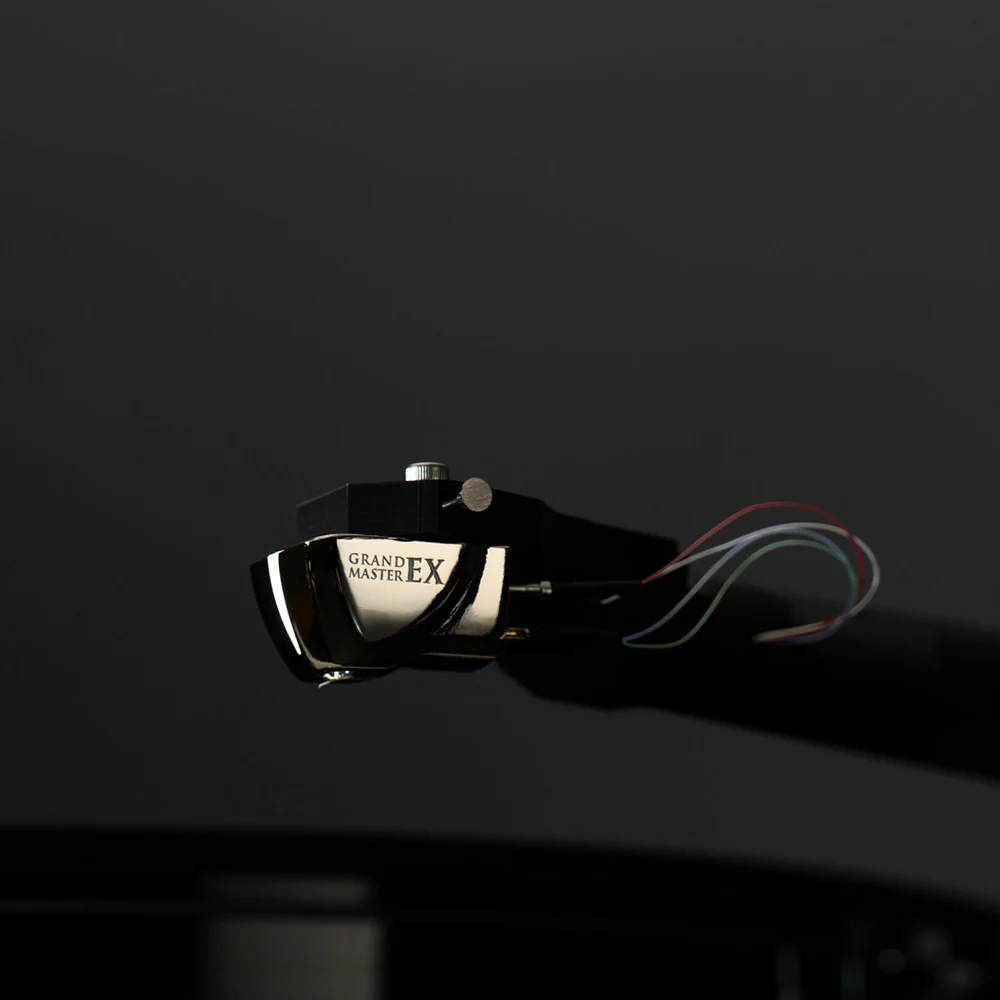

The DS Audio Grand Master Extreme uses a 0.22mm square one-piece diamond cantilever with an integral Micro ridge stylus tip made from a single diamond. This more accurately transmits the groove modulation to the 3rd generation optical generator than the traditional bonded cantilever and stylus.

SPECIFICATIONS



• Signal output: Photo-electric Conversion
• Channel separation: 27db more（1kHz）
• Weight: 7.7g
• Output signal level: 70mV more
• Canti-lever & Needle: ONE PIECE DIAMOND
• Body material: Ultra duralumin
• Cantilever holder material: Stainless
• Needle pressure: 2.0g～2.2g(2.1g is recommended)
• Stylus: Micro Ridge
